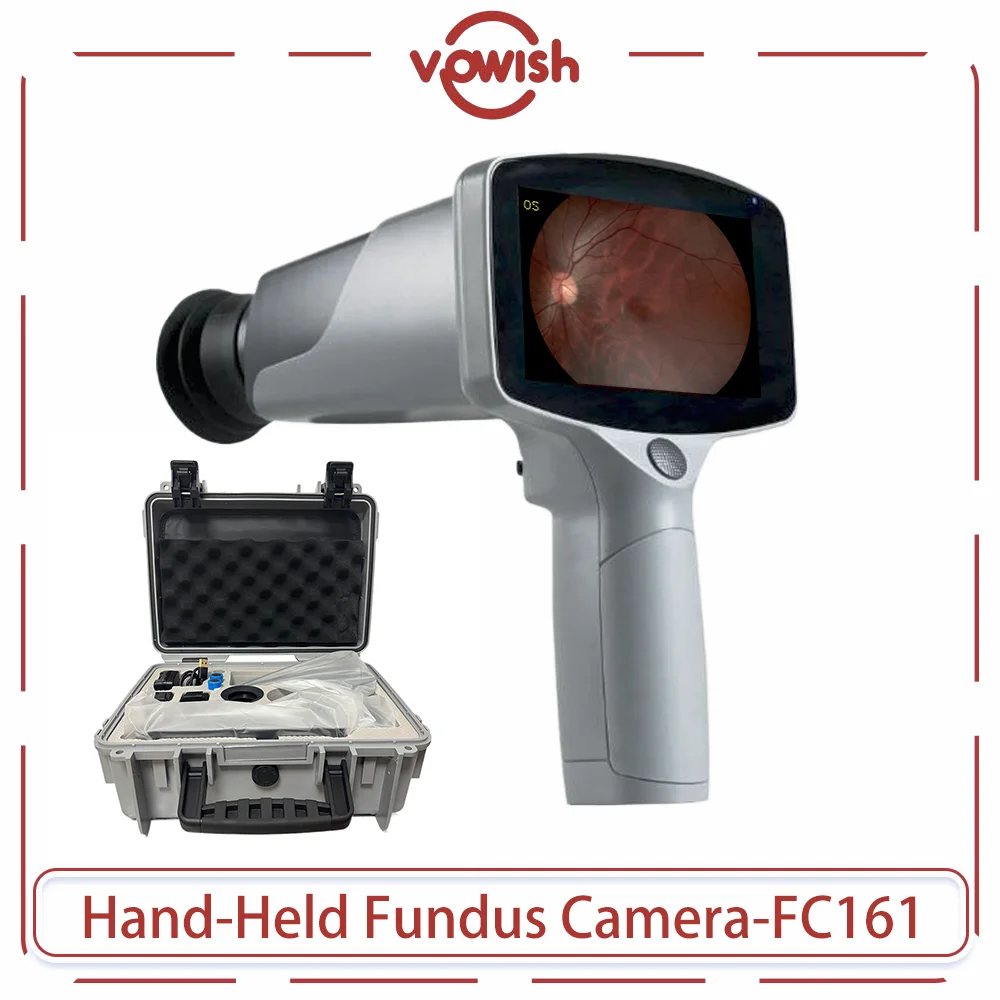

MediWorks Ophthalmic Eye Equipment Non Mydriatic Handheld Fundus Camera Portable Automatic Fundus Camera
$7,934.62
Free Shipping
On orders over $50
2 Year Warranty
Quality guaranteed

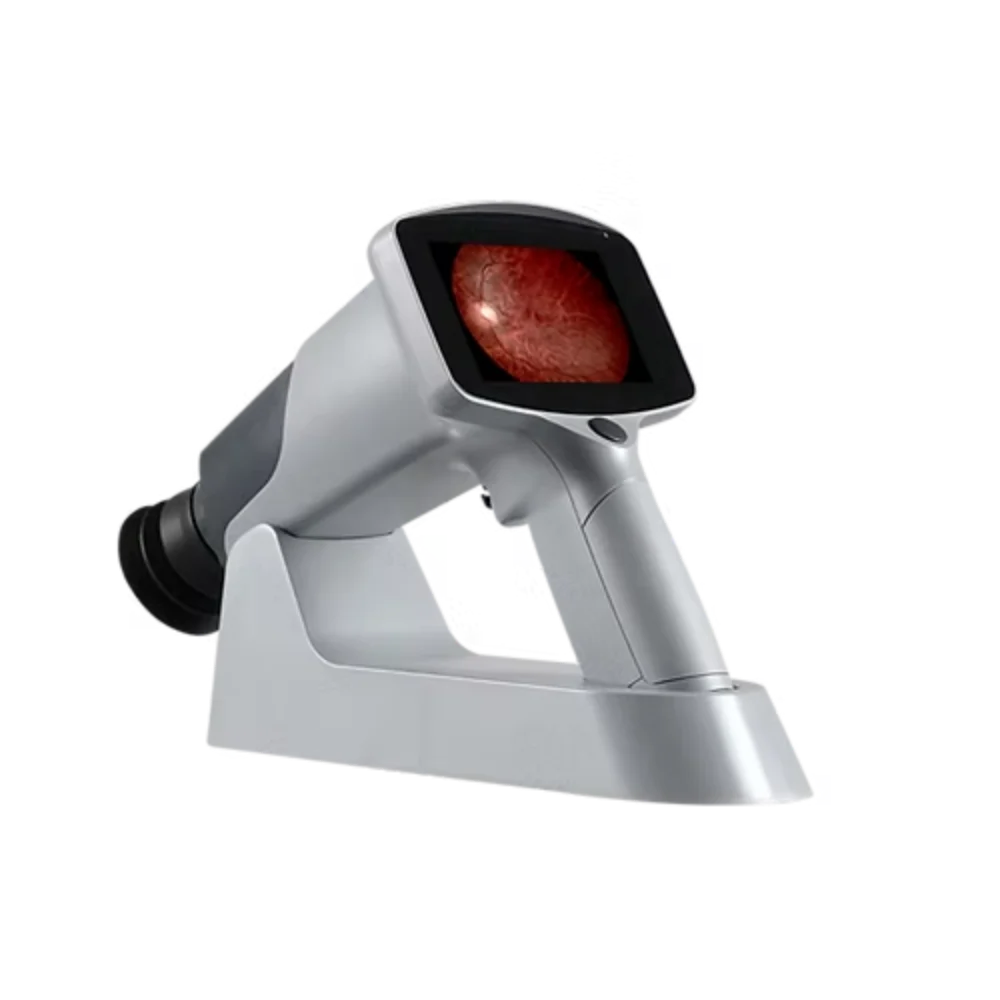

Portable Fundus Camera handheld Fundus camera Ophthalmic Instrument
Model: LTO-FC

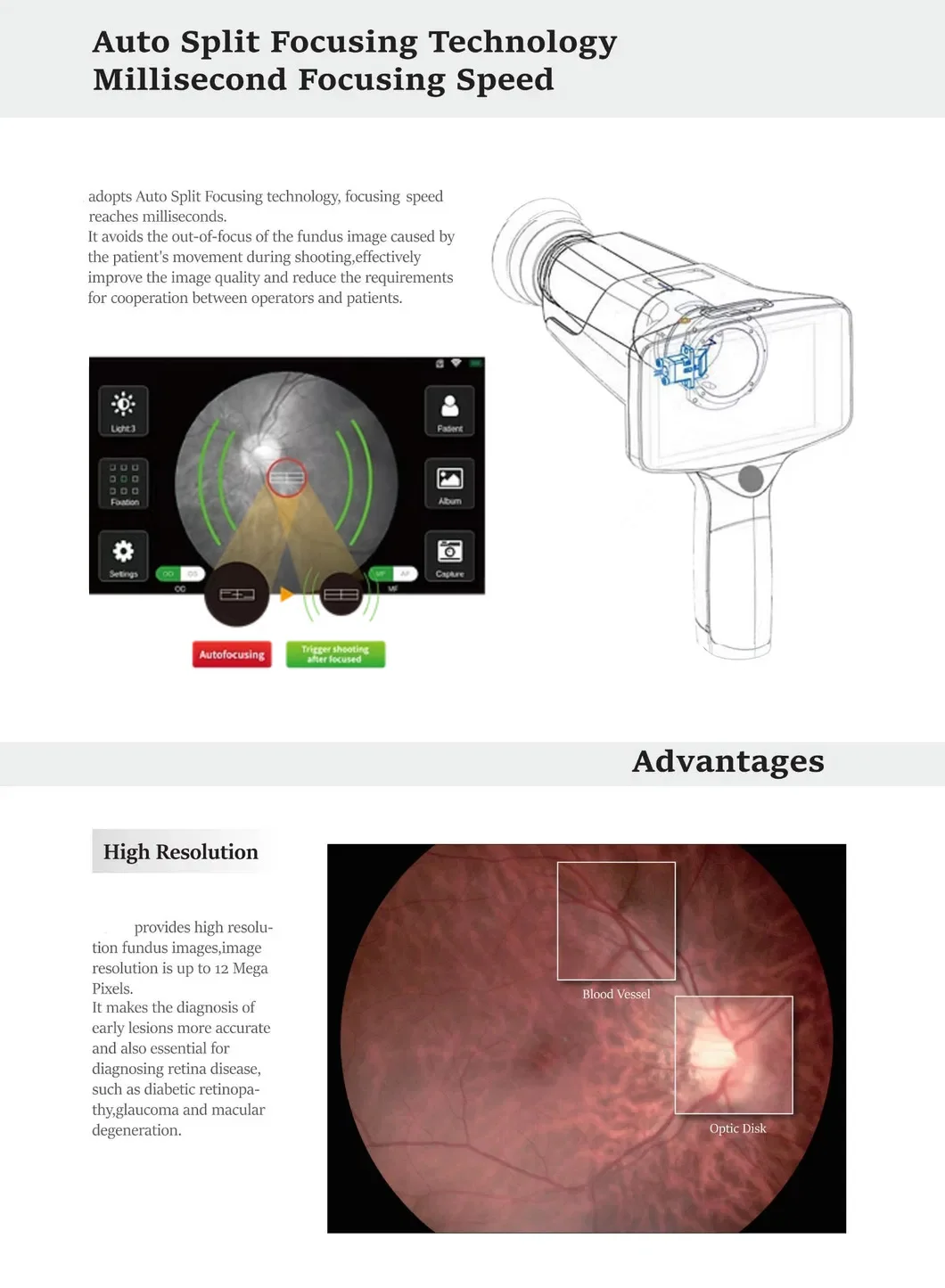

High Resolution
provides high resolution fundus images,image
resolution is up to 12 Mega Pixels.
It makes the diagnosis of early lesions more accurate and also essential for diagnosing retina disease,such as diabetic retinopathy,glaucoma and macular degeneration.

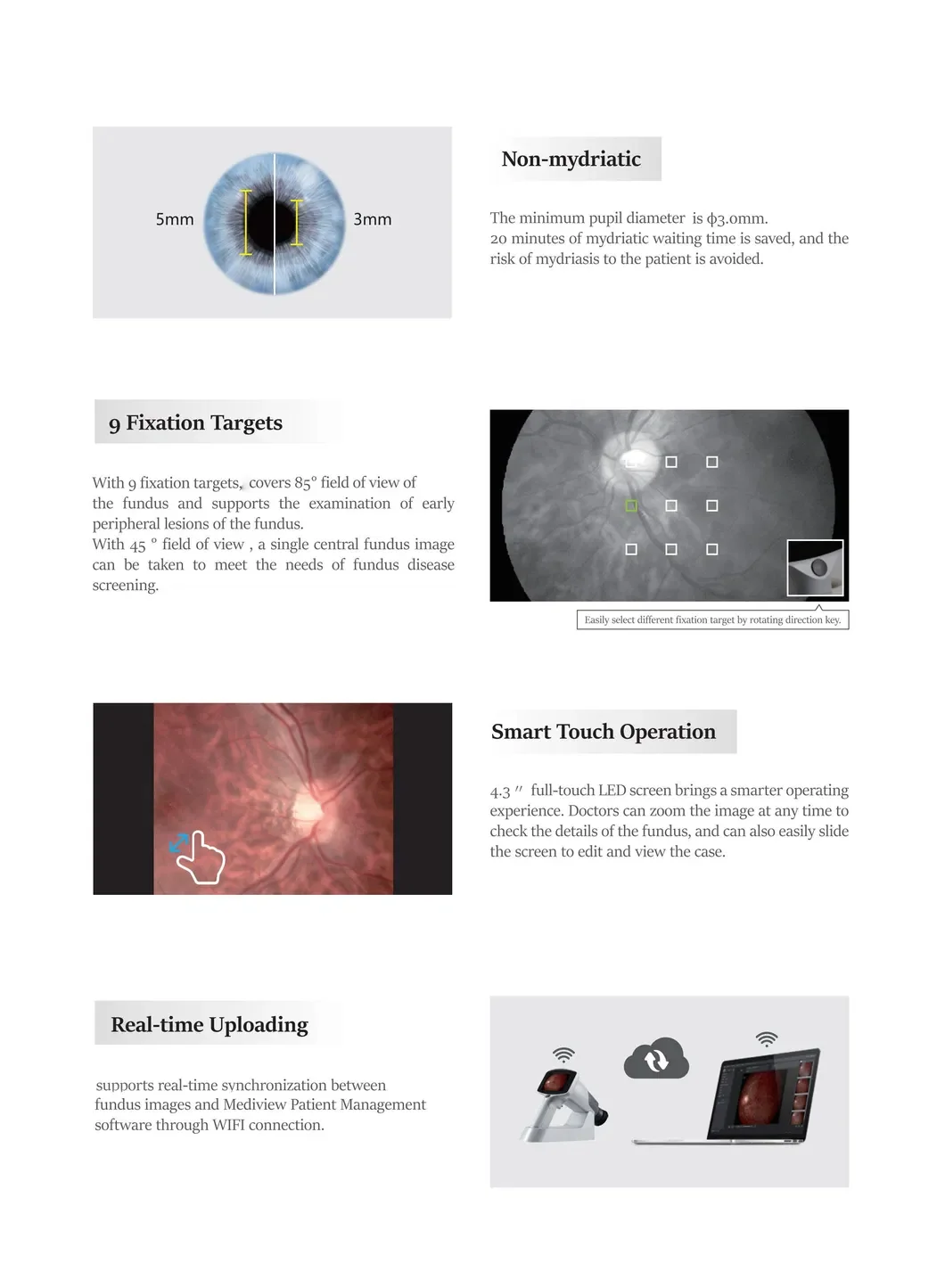

Non-mydriatic
The minimum pupil diameter is φ3.omm. 20 minutes of mydriatic waiting time is saved, and the risk of mydriasis to the patient is avoided.
9 Fixation Targets
With 9 fixation targets, covers 85° field of view of the fundus and supports the examination of early peripheral lesions of the fundus. With 45.field of view , a single central fundus image can be taken to meet the needs of fundus disease screening.
Smart Touch Operation
4.3 "" full-touch LED screen brings a smarter operating experience. Doctors can zoom the image at any time to check the details of the fundus, and can also easily slide the screen to edit and view the case.

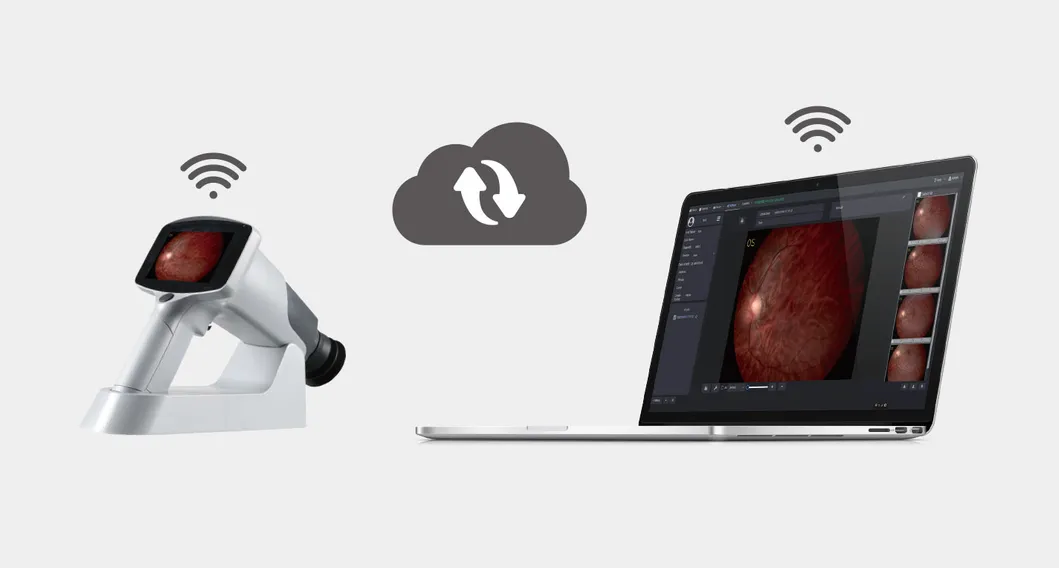

Real-time Uploading
supports real-time synchronization between fundus images and Mediview Patient Management software through WIFI connection.

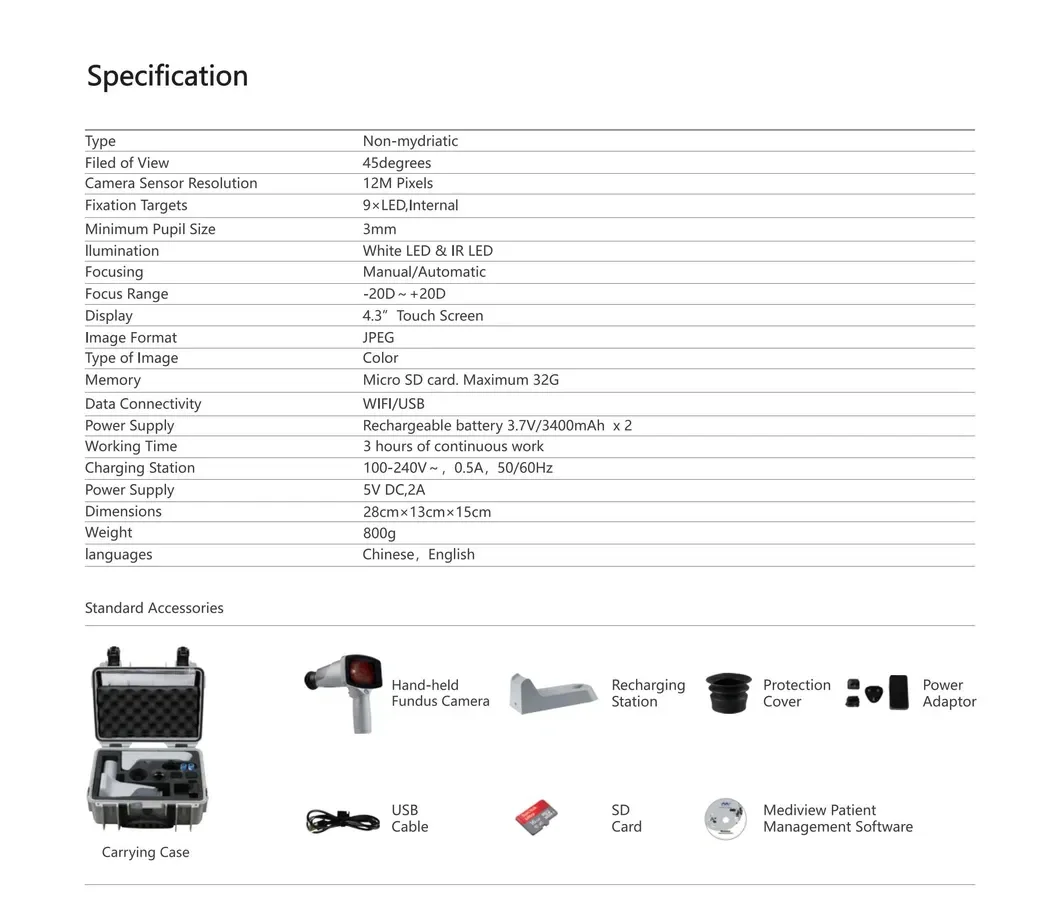

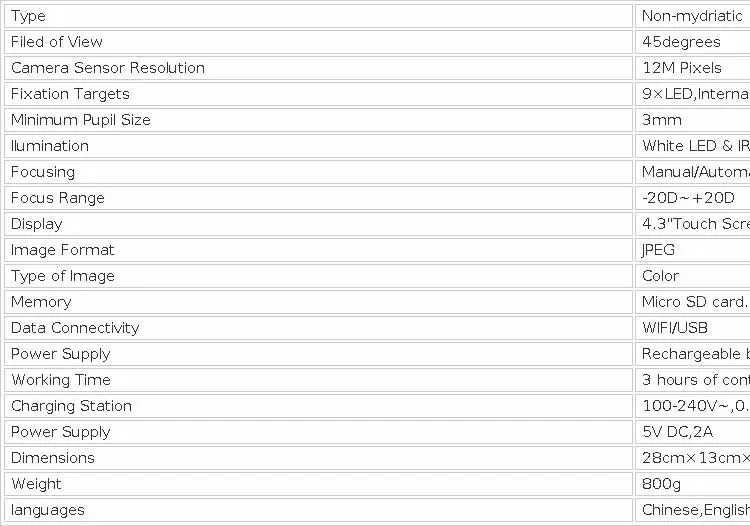

| Type | Non-mydriatic |
| Filed of View | 45degrees |
| Camera Sensor Resolution | 12M Pixels |
| Fixation Targets | 9×LED,Internal |
| Minimum Pupil Size | 3mm |
| llumination | White LED & IR LED |
| Focusing | Manual/Automatic |
| Focus Range | -20D~+20D |
| Display | 4.3"Touch Screen |
| Image Format | JPEG |
| Type of Image | Color |
| Memory | Micro SD card. Maximum 32G |
| Data Connectivity | WIFI/USB |
| Power Supply | Rechargeable battery 3.7V/3400mAh x 2 |
| Working Time | 3 hours of continuous work |
| Charging Station | 100-240V~,0.5A,50/60Hz |
| Power Supply | 5V DC,2A |
| Dimensions | 28cm×13cm×15cm |
| Weight | 800g |
| languages | Chinese,English |
